/双面铜复不锈钢复合板带

Single / double side copper clad stainless steel clad plate

特性优点 Character

单面或者双面铜复不锈钢,具有超高强度、优良的弹性、优良的可塑性、优良的抗氧化性能、优良的导电性能及循环使
用的优点,优于电镀材料表面质量和结合强度,焊接效率高。广泛用于电器领域、汽车领域及航空领域。
Single or double sided copper composite stainless steel, has advantages of super high strength, good elasticity, excellent plasticity, excellent oxidation resistance, excellent electrical conductivity and circulation use, superior material plating surface quality and bonding strength, welding efficiency is high. Widely used in the field of electrical appliances, automotive and aerospace.

通常可供规格范围
Specifications available

标准尺寸 铜-不锈钢 铜-不锈钢-铜 不锈钢-铜-不锈钢
带材宽度 < 800mm < 800mm < 800mm
带材厚度 0,08 - 3,0 mm 0,08 - 3,0 mm 0,08 - 3,0 mm
覆层厚度 3 - 15 % 3 - 15 % 10 - 50 %
芯层/基层材料 Stainless Steel Stainless Steel Cu
覆层材料 Cu Cu Stainless Steel
交付形式 卷材 卷材 卷材
表面处理状态 亮面 亮面 亮面
复层厚度比例可以依据客户要求不限于3~15% ; 双面铜层或者不锈钢 ,可以相同也可以不同(依据客户的要求调整)
The thickness of the copper or stainless steel is not limited 3%~15% ; but custom’ requirement  .  One side of the copper or stainless steel can be different from the other.

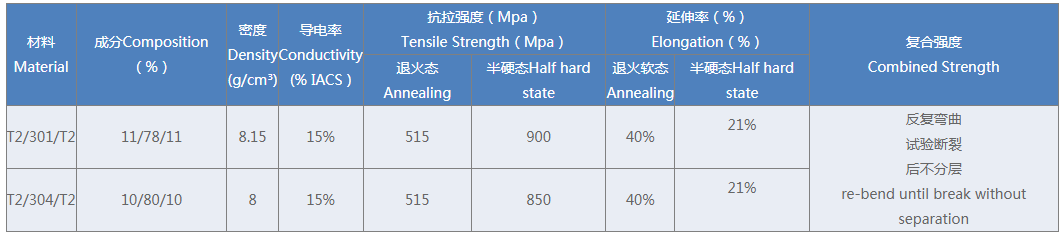

产品性能
Product performance

材料
Material
成分Composition(%) 密度
Density
(g/cm³)
导电率
Conductivity
(% IACS )
抗拉强度(Mpa)
Tensile Strength(Mpa)
延伸率(%)
Elongation(%)
复合强度
Combined Strength
退火软态
Annealing
半硬态Half hard state
退火态Annealing 半硬态Half hard state
T2/301/T2 11/78/11 8.15 15% 515 900 40% 21%

反复弯曲
试验断裂
后不分层
re-bend until break without separation
T2/304/T2 10/80/10 8 15% 515 850 40% 21%

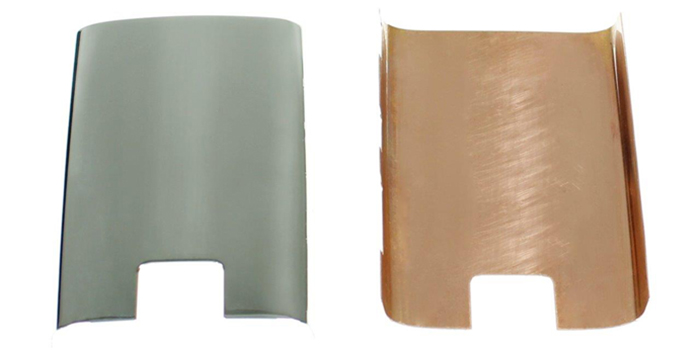

手机中板

材料
Material
成分Composition(%) 密度
Density
(g/cm³)
导电率
Conductivity
%IACS
抗拉强度(Mpa)
Tensile Strength(Mpa)
延伸率(%)
Elongation(%)
复合强度
Combined Strength
平面度
Flatness surface(OMM 2.55)
平面度
Flatness Edge(OMM 2.55)
  平面度 侧弯
S-wave
316L/C10200/316L

1:2:1 8.4 50% 500 >10 90度折弯不开裂 <0.6 <0.8 <0.7
316L/C10200/316L

1:5:1 8.6 73% 350 >10 90度折弯不开裂 <0.6 <0.8 <0.7
316L/C10200/316L

1:1:1 8.3 35% 550 >10 90度折弯不开裂 <0.6 <0.8 <0.7

复层厚度比例可以依据客户要求不限于表格 ; 双面铜层或者不锈钢 ,可以相同也可以不同(依据客户的要求调整)
The thickness of the copper or stainless steel is not limited the table  ; but custom’ requirement  .  One side of the copper or stainless steel can be different from the other.
